Wet Blasting Equipment

for plate-shaped parts
– PP2000
Wet-blasting-machine-PP2000

Dasiauto Wet Blasting Equipment is an automated device that suspends metal parts with
complex shapes onto fixtures, enabling comprehensive surface processing of the
components.

The type PP2000 can automatically perform degreasing and cleaning of simultaneous
double-sided processing of lead frames and other thin plate-shaped workpieces, such as
semiconductor resin deburring, overmolding removal of embedded LED chips, Deburring
of LED packages, Non-conductive layer removal of LTCC boards, processing of ceramic
plates or metal plates or films, adhesion improvement of other thin plate-shaped
workpieces. By simply replacing the clamping, it can adapt to different types of
workpieces.

Equipment Features

  • For thin plate-shaped workpieces
  • Conveyor-Type equipment
  • Automatically and precisely cleaning & rinsing
  • Low cost version

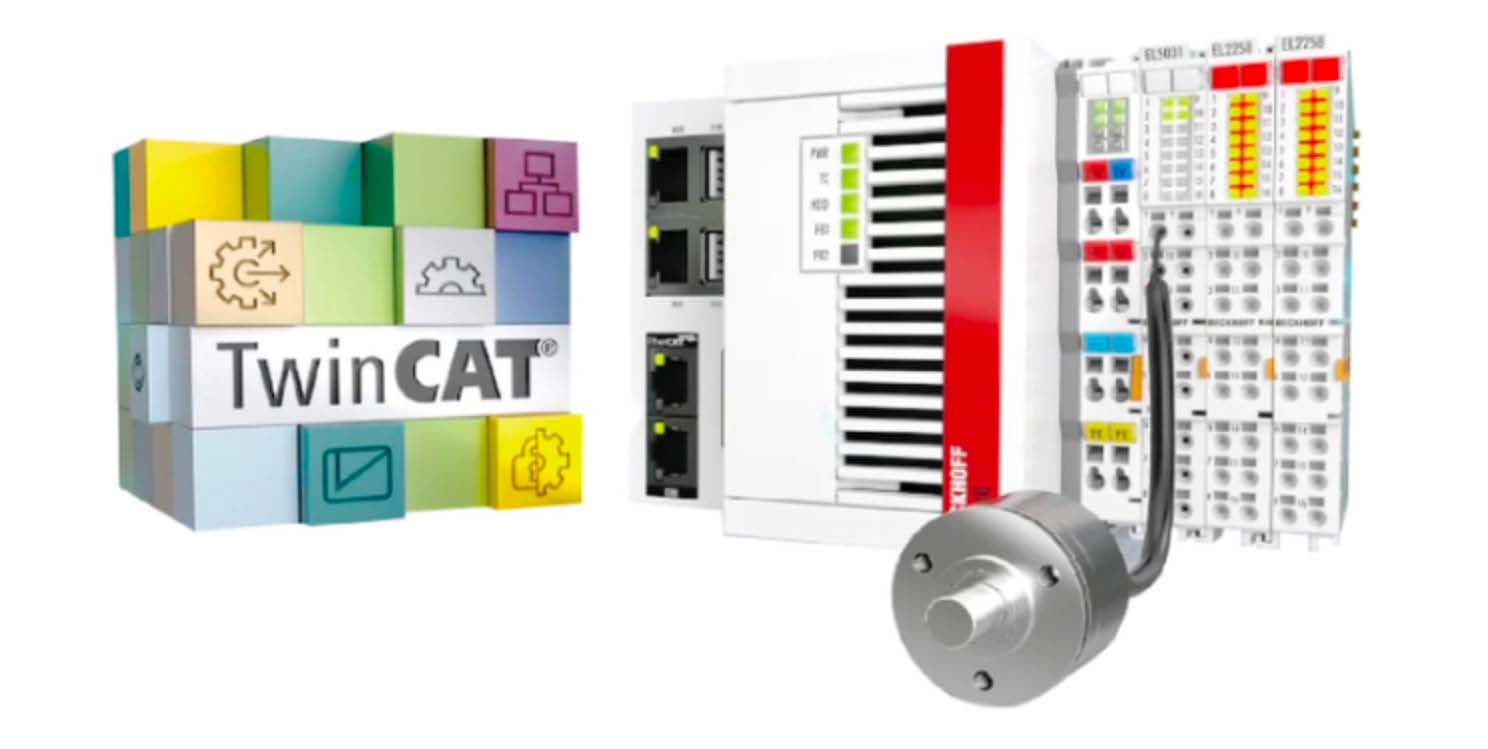

Control System:

  • German Beckhoff control system
  • Safe and reliable
  • Integrate MES & ERP
  • French Schneider intouch human-machine interaction interface
  • Simple & efficient remote control and maintenance
Wet-blasting-machine
Wet-blasting-machine

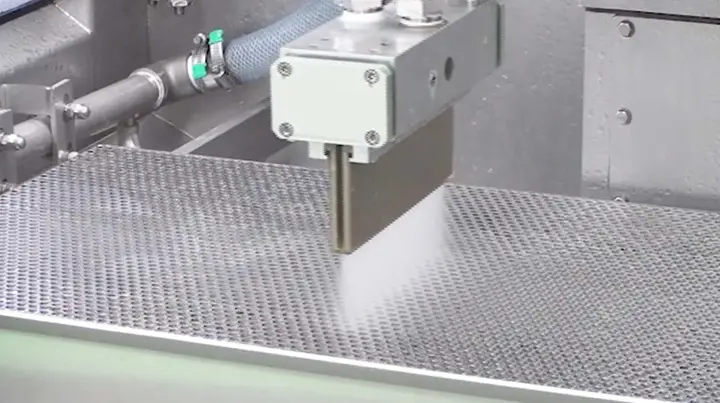

Blasting Chamber:

  • Uniform and consistent surface cleaning
  • Different-size abrasive possible as per requirement
  • Processing capacity depends on the dimension of workpiece
  • Damage-free processing for thin plates

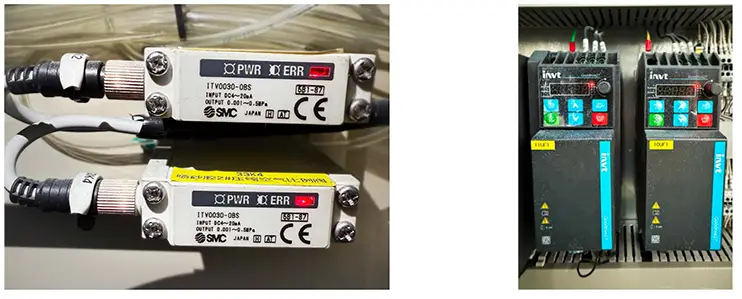

PID Closed-loop Control:

  • Constant and precise pressure
  • Stable slurry pressure

Waste and Separation Device:

  • Compact structure
  • High-precision separation
  • High-efficiency separation
No. Item Parameter
1 Dimension 2000(W) × 800(D) × 1000(H)mm
2 Workpiece Size Width 10-80mm, Length 100-300mm
3 Conveyor Speed <5m/min
4 Powder Supply AC 350V, 50HZ
5 Air Supply Pressure 0-0.7MPa
6 Options Loader, unloader, clamp, abrasive customized
