Single Chamber

Wet Blasting Equipment

SC-40

Dasiauto Wet Blasting Equipment is an automated device that suspends metal parts with complex shapes onto fixtures, enabling comprehensive surface processing of the components.

The type SC-40 can automatically perform degreasing and cleaning of workpieces on the hangers. By simply replacing the hangers, it can adapt to different types of workpieces. It can ensure the workpieces do not contact with each other during the treatment process, so no dents or deformations will occur.

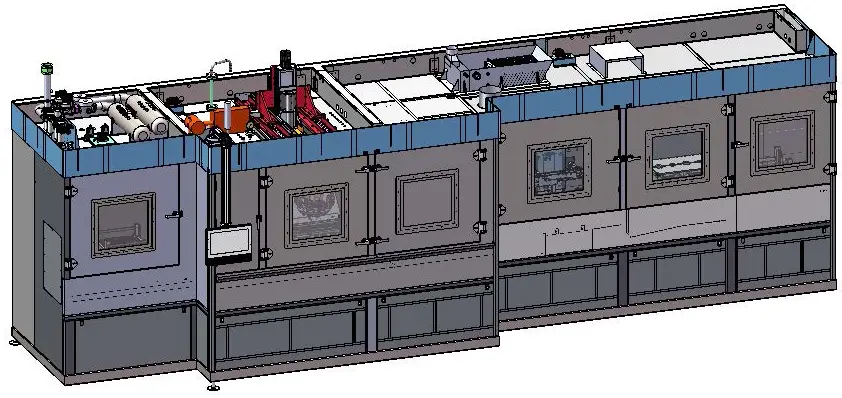

Single-chamber-wet-blasting-equipment-SC-40

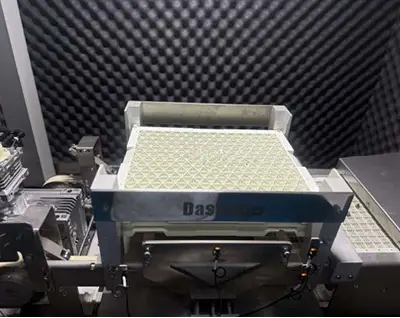

Loading Unit

wet blasting china supplier
  • High-accuracy servo motor
  • Up to 20 trays
  • Up to 40kg

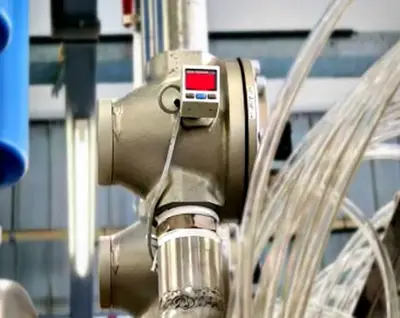

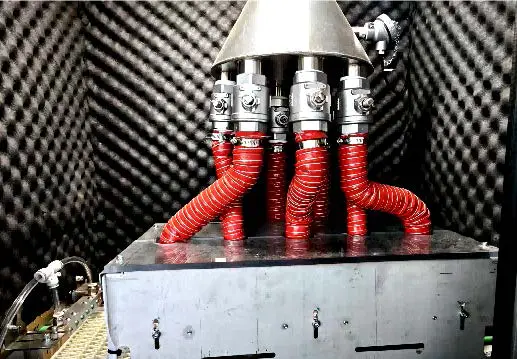

Sand Blasting Unit

Single Chamber Wet Blasting Equipment - SC-40
  • Dual constant pressure supply
  • Propotional Valve

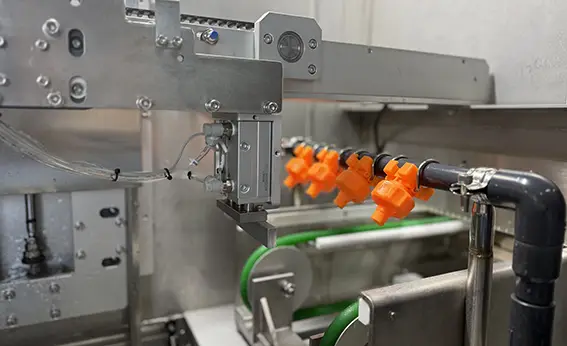

Cleaning Unit

Single Chamber Wet Blasting Equipment - SC-40
  • Deeply Cleaning
  • Sand Recycling

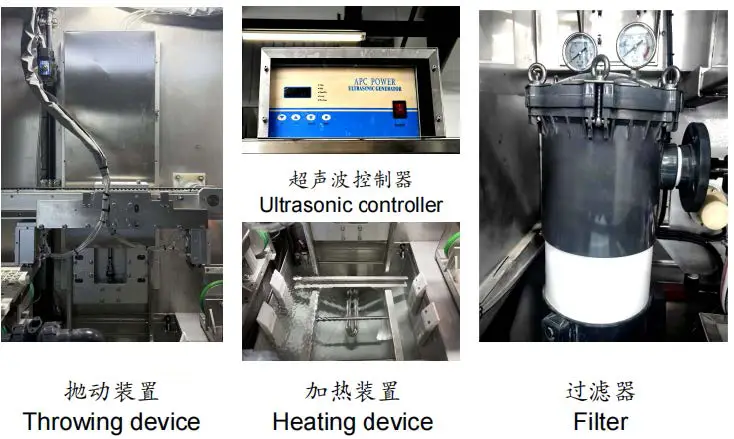

Ultrasonic Cleaning Unit

      • Cover blind points on the parts
      • Ultrasonic can disperse and remove dirts
      • Heating can melt grease
      • 20μm filter
      • High flow rate
      • Cover blind points on the parts
      • Ultrasonic can disperse and remove dirts
      • Heating can melt grease
      • 20μm filter
      • High flow rate

DI Water Rinsing Unit

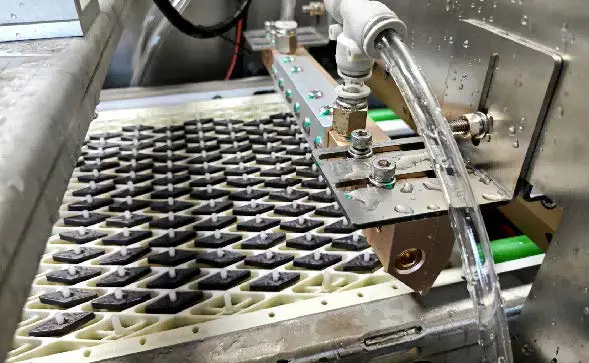

Air Knife Assembly

Single-chamber-wet-blasting-equipment-SC-40
      • Numbers of air knife optional, one set of air knife or two
      • Air knife blow water off from both top and bottom
      • Efficiency improvement
      • Energy saving & emission reduction
      • Tray monitoring
      • Vortex air pump for high air volume drying
      • Dual control of wind and temperature for free adjustment
      • Self-heating drying for energy-saving

Air Knife Assembly

Single-chamber-wet-blasting-equipment-SC-40

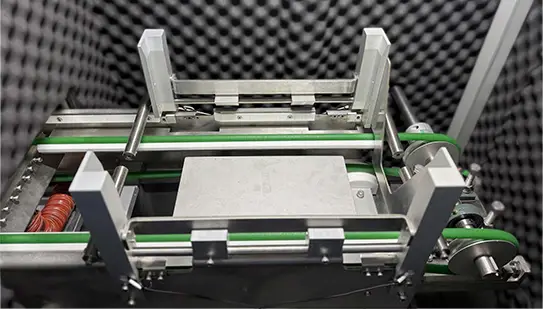

Unloading unit

      • Up to 20 trays
      • Remind to unload the trays, unmanned
      • Up to 40kg

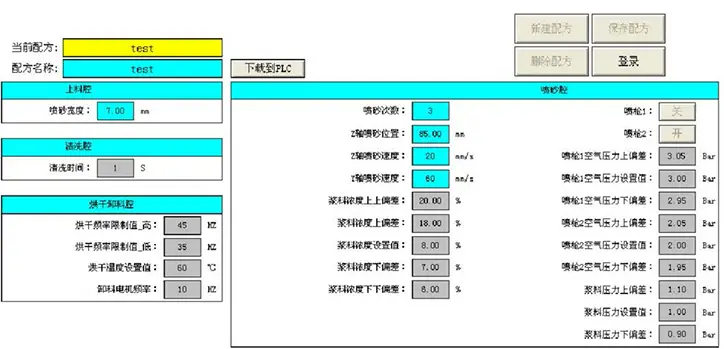

      • Various optional processes
      • Hierarchical management of permissions
      • Multiple languages available

HMI operation system

Single-chamber-wet-blasting-equipment-SC-40

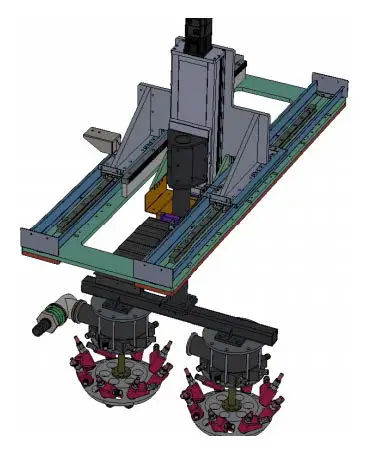

Nozzle Moving Mechanism

      • Guiderail/Pulley
      • Slurry pressure equalizer and air pressure equalizer
      • 0-600mm (Y-axle)
      • 0-100mm (Z-axle)
      • Servo control Y Z axle movement

Equipment Parameters

No. Items Parameters
1 Sand concentration 5-30%
2 Online detection of water and slurry concentration and automatic feeding Optional
3 Online detection of water and slurry PH-value and automatic adjusting Optional
4 Fine sand separation and filtering function Yes
5 Cleaning method Ultrasonic + Throwing + Heating + Rinsing with pure water
6 Drying method High pressure air flow for quick drying
7 Tray capacity up to 40Kg
8 Surface treatment capacity >40,000pcs/24h
9 Honing capacity >240,000pcs/24h
10 Insert treatment Pre-treatment before coating Post treatment after coating Honing
11 Air source treatment and filtration Optional
12 Compressed air 0-0.4Mpa
13 Slurry pressure 0-0.2MPa
