Wet Blasting Equipment

For Complex-Shape Parts

– CP1800

Wet-blasting-machine-CP1800-china-supplier
Dasiauto Wet Blasting Equipment is an automated device that suspends metal parts with complex shapes onto fixtures, enabling comprehensive surface processing of the components. The type CP1800 can automatically perform degreasing and cleaning of complex-shape workpieces, such as forgings, castings or 3D printing parts, gears etc. By simply replacing the clamping, it can adapt to different types of workpieces.

Equipment Features

  • For complex-shape workpieces
  • Automatically and precisely cleaning & rinsing
  • Workpiece loading and unloading automatically

Control System:

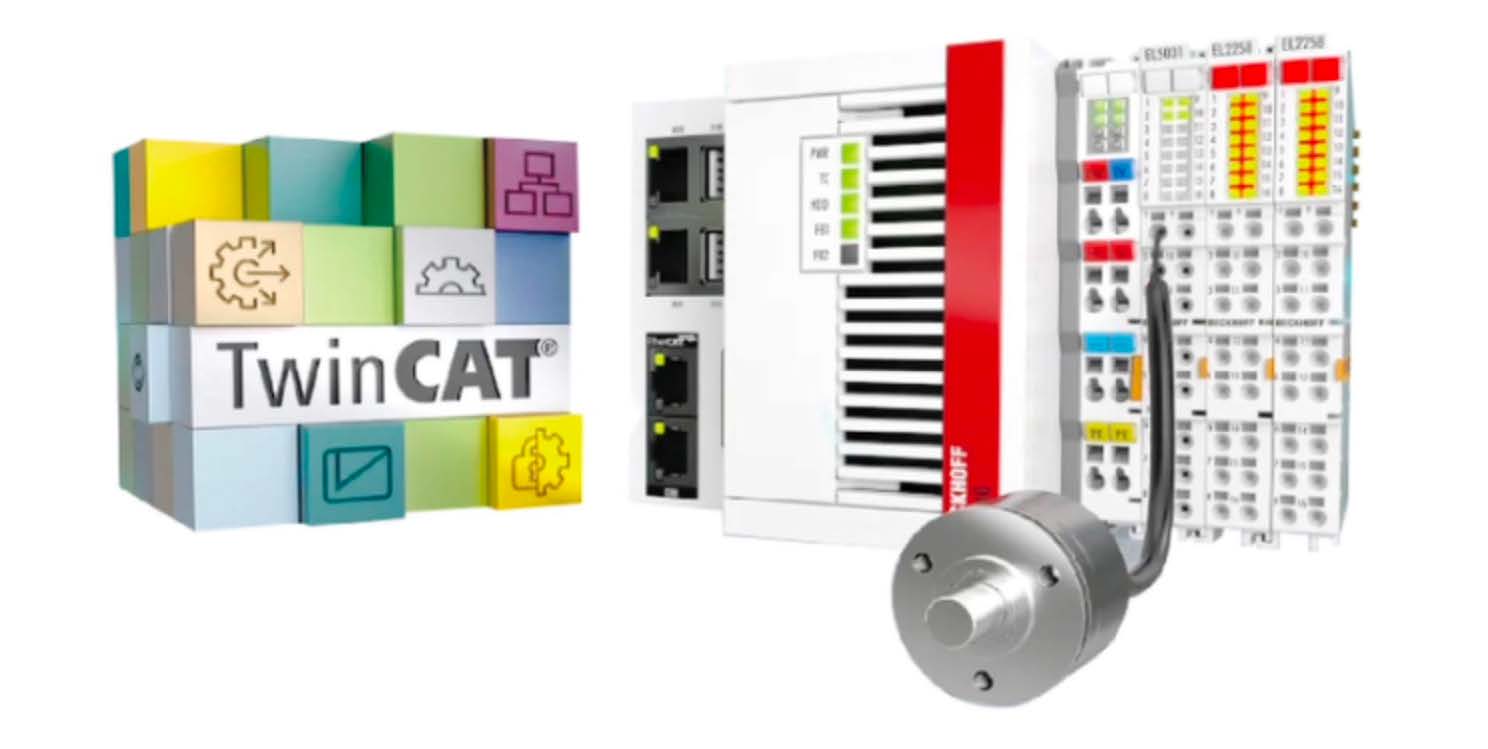

  • German Beckhoff control system
  • Safe and reliable
  • Integrate MES & ERP
  • French Schneider intouch human-machine interaction interface
  • Simple & efficient remote control and maintenance Loading
blasting-machine
Wet-blasting-machine-CP1800

Loading & Unloading Units:

  • Automated or manual front-loading systems optional
  • Customized hangers for different complex parts optional
  • Mobile rigs allows for bulk loading of abrasive media (e.g.recycled glass or aluminum oxide)

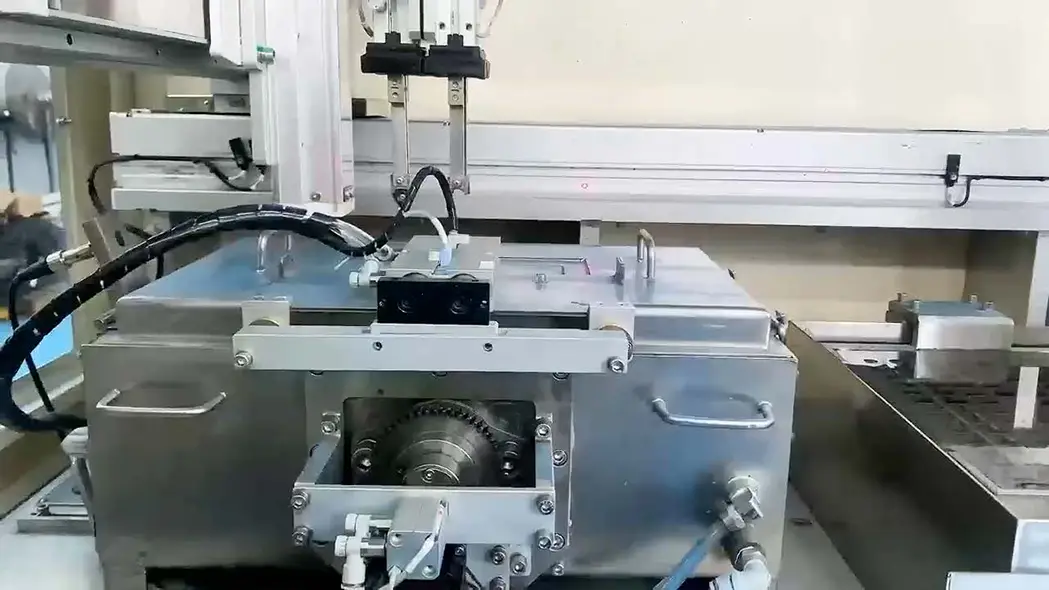

Blasting Chamber:

  • One or more heavy-duty blast nozzles optional
  • Boron carbide nozzles directly push the slurry onto the part
  • Rotation of workpiece for uniform cleaning possible
  • Precise, hands-free operation allowable
Wet-blasting-machine-PP2000

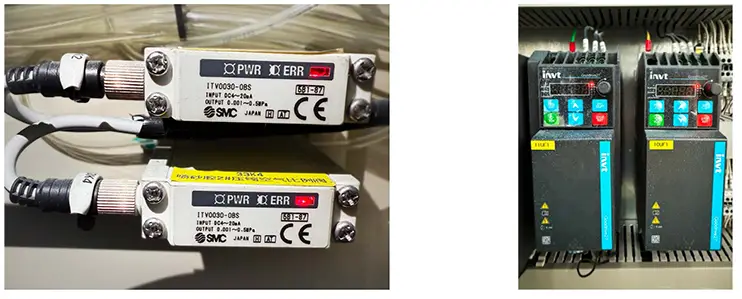

PID Closed-loop Control：

  • Constant and precise pressure
  • Stable slurry pressure

Waste and Separation Device：

  • Compact structure
  • High-precision separation
  • High-efficiency separation
Wet-blasting-machine

Equipment Parameters

No. Item Parameter
1 Dimension 1800(W) X 600(D) X 800(H)mm
2 Workpiece Size Complex dimension possible
3 Conveyor Speed <5m/min
4 Powder Supply AC 350V, 50HZ
5 Air Supply Pressure 0-0.7MPa
6 Options Loader, unloader, clamp, abrasive customized
