Wet Blasting Equipment
For Round Rod
– RP12000
Dasiauto Wet Blasting Equipment is an automated device to enable comprehensive
surface processing of the components.

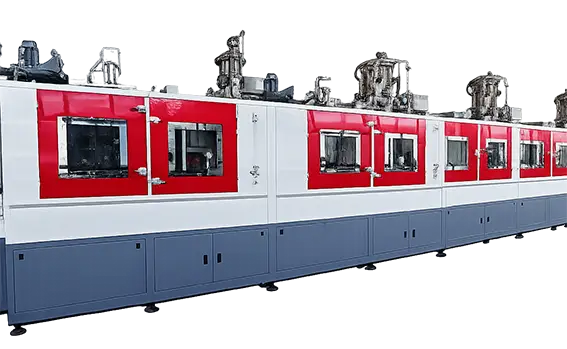

The type RP12000 is a large capacity and continuous automatic wet blasting equipment,
specially for the cleaning, roughening, descale, rust-removing and phosphating of round
rods. It also can handle some parts with cylindrical shapes, such as bushings.
Equipment Features
- Fully automatically continuous in-line type
- Round rods continuously fed through the blasting chamber
- Rods can be rotated as they travel, exposing the entire circumference to the blasting

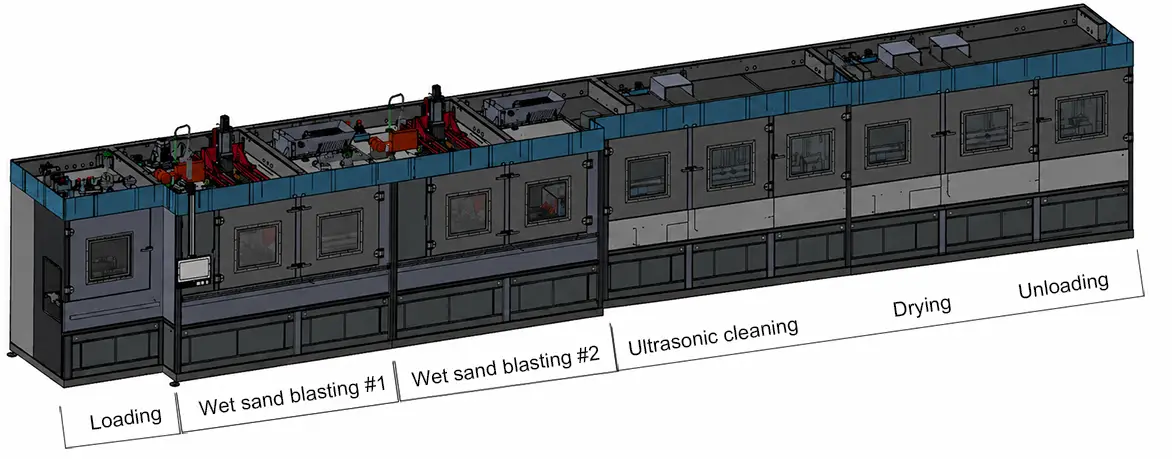

Flow Procedure
Flow Procedure
| No. | Item | Parameter |
|---|---|---|
| 1 | Dimension | 12000(W) X 2000(D) X 2000(H)mm |
| 2 | Workpiece Size | Diameter <200mm |
| 3 | Load Capacity | <150kg |
| 5 | Operating Speed | 1-200mm/min |
| 6 | Powder Supply | AC 350V, 50HZ |
| 7 | Air Supply Pressure | 0-0.7MPa |
| 8 | Options | Loader & unloader, abrasive customized, phosphate process possible |
