Quick Answer
For precision parts, wet abrasive blasting is usually preferred when the goal is consistent surface refinement, lower airborne dust, and less risk of harsh surface damage than dry blasting. The process uses water, abrasive media, and compressed air to create a controlled slurry stream that cleans, deburrs, edge-prepares, or textures the workpiece. In production, it is especially valuable for carbide tools, machined metal parts, additive-manufactured components, glass, and cosmetic surfaces where finish quality, repeatability, and process control matter more than maximum stripping speed.
| Core factor | Typical conclusion |
|---|---|
| Process type | Wet blasting process using water-borne abrasive slurry |
| Pressure profile | Typically low to medium, tuned to material and finish target |
| Surface effect | Even matte or satin finish with moderated micro-erosion |
| Dust behavior | Much lower free airborne dust than dry blasting |
| Common applications | Edge honing, deburring, coating pretreatment, AM finishing, glass frosting |
| Delivery profile | Typical lead times are shorter for standard cabinets and longer for custom automation |
What Is wet abrasive blasting
Wet abrasive blasting is a surface treatment process in which fine abrasive particles are suspended in water and then propelled onto a workpiece by compressed air. It belongs to the broader wet blasting family, alongside terms such as slurry blasting, vapor blasting, and wet sandblasting. Although terminology varies by industry and geography, the technical principle is the same: water carries the abrasive to the impact zone, where the surface is cleaned or modified in a more controlled way than in many dry processes.
Within industrial finishing, wet abrasive blasting sits between aggressive dry blasting and slower mass-finishing methods. It is not mainly used for heavy stock removal. Instead, it is chosen for processes such as precision deburring, edge preparation, oxide removal, cosmetic texturing, post-processing of additively manufactured parts, and pretreatment before later coating or bonding steps.
The water phase changes how the abrasive interacts with the surface. Water suppresses much of the dust plume that would otherwise develop during blasting, helps carry broken fines away from the impact zone, and cushions particle impact. That combination often creates a finer and more even visual result, especially on precision-machined parts, thin edges, coated surfaces, and geometry-sensitive features.
From a process-engineering perspective, the main selling points are dust suppression, lower risk of media impregnation on certain soft or coated surfaces, more refined surface appearance, and strong repeatability when pressure and slurry concentration are controlled. These traits explain why wet abrasive blasting is widely used in toolmaking, metalworking, glass treatment, and cosmetic finishing of 3C components.
It is also useful to distinguish the process from generic pressure washing or liquid honing shorthand. Wet abrasive blasting is still an abrasive process. The water does not replace the media; it acts as the transport and cushioning phase. That distinction matters because performance depends on abrasive hardness, particle size distribution, slurry concentration, nozzle geometry, stand-off distance, and part movement through the blast zone.
For technical background, the broader abrasive blasting overview provides a helpful process-family definition, but industrial wet systems are more specialized than the generic term suggests. In manufacturing, the real value comes from the ability to combine cleaning, micro-texturing, and controlled surface conditioning within a repeatable enclosed system.
How Does wet abrasive blasting Work
Wet abrasive blasting works by recirculating a slurry of water and abrasive media through a closed system and accelerating that slurry through a nozzle with compressed air. The quality of the result depends less on the simple fact of “wet blasting” and more on how consistently the machine controls slurry composition, nozzle delivery, pressure stability, recovery, and waste separation over time.
Slurry mixing and media suspension
The process starts in a tank where water and abrasive are combined at a defined concentration. The system must keep the media adequately suspended so that the slurry reaching the nozzle remains stable through the production cycle. If coarse particles settle or if excessive fines accumulate, the blasting behavior changes even when the nominal set pressure remains the same.
Media selection is therefore fundamental. Particle size, hardness, angularity, and breakdown behavior all affect cut rate, surface texture, edge rounding, and operating cost. In industrial practice, the correct media is chosen according to substrate material, part geometry, finish requirement, and cost target rather than by default habit.
Compressed-air acceleration path
At the blast gun or nozzle, compressed air accelerates the slurry toward the workpiece. The air stream generates impact energy, while the slurry ratio influences how densely particles strike the target area. Nozzle diameter, impingement angle, stand-off distance, and traverse speed collectively determine whether the process behaves like light cleaning, controlled deburring, edge honing, or cosmetic surface finishing.
Because the abrasive is carried in water, impact is more cushioned than in dry blasting. That moderation does not eliminate cutting action, but it often reduces the tendency toward overly rough profiles or erratic local attack. In precision applications, that is a major advantage because the aim is usually controlled surface change rather than maximum removal rate.
Closed-loop recovery and sedimentation
After striking the workpiece, the slurry drains back into the machine and enters the recirculation loop. Reusable media and water are returned to the process, while spent fines, detached contaminants, and sludge are separated through sedimentation and related handling mechanisms. A well-designed recovery loop is essential both for process consistency and for consumable economy.
Waste handling is often underestimated during machine selection. If sludge discharge is awkward or incomplete, contamination gradually shifts the effective media mix and makes finishes less predictable. In practice, recovery design has a direct influence on uptime, chamber cleanliness, and recipe stability.
Water mist control and chamber visibility
Wet blasting reduces dry dust, but it still requires extraction. Inside the cabinet, water mist and suspended droplets can reduce visibility and interfere with inspection or manual intervention. That is why enclosed industrial systems typically incorporate mist management and dust collection elements to keep the viewing area usable and the machine interior cleaner.
Pressure regulation and recipe repeatability
For precision finishing, maximum pressure is usually less important than stable pressure. PID-based regulation can hold blasting conditions more consistently as hoses wear, media loads shift, or long production runs progress. That matters for edge radius control, cosmetic uniformity, and narrow process windows on higher-value parts.
Recipe storage is equally important where multiple part families are processed on one machine. Operators should be able to call validated settings for pressure, slurry ratio, cycle time, nozzle path, and motion sequence without rebuilding the process from scratch each shift.
Consistent wet blasting is achieved by controlling slurry quality, pressure stability, motion accuracy, and recovery as one system.
| Parameter | Typical industrial practice | Why it matters |
|---|---|---|
| Working pressure | Typically set in a low-to-medium range based on substrate and finish target | Controls impact energy and aggressiveness |
| Slurry concentration | Usually maintained within a validated weight or volume window | Influences cut rate and finish consistency |
| Abrasive particle size | Fine to medium grades are common for precision work | Affects roughness, edge effect, and cleaning behavior |
| Air flow demand | Depends on nozzle size, pressure, and number of active guns | Determines utility sizing and delivery stability |
| Media consumption | Varies with media durability, contamination load, and process intensity | Drives operating cost and quality drift risk |
| Stand-off distance | Fixed by recipe, fixture, or motion program | Changes local coverage and finish uniformity |
| Control system | Manual regulation or PLC/HMI recipe management | Supports repeatable production and reduced operator variation |
| Recovery method | Closed-loop recirculation with sedimentation and mist extraction | Maintains slurry stability and cleaner operation |
wet abrasive blasting vs Dry Blasting vs Other Methods
Wet abrasive blasting is most often compared directly with dry blasting because both use projected abrasive media, yet their behavior at the workpiece and inside the enclosure is quite different. Dry blasting is often favored for heavy cleaning, rust removal, or aggressive profile generation. Wet abrasive blasting is more commonly selected when the priority is cleaner operation, lower dust burden, reduced risk of embedded contamination, and a more refined finish on precision parts.
It is also useful to compare it with neighboring finishing methods. Shot peening may use related hardware, but its goal is functional compressive stress rather than general cleaning or cosmetic surface improvement, as reflected in ASTM shot peening terminology. Vibratory finishing is excellent for bulk smoothing of many small parts, but it generally cannot match the local selectivity, directional control, or geometry-specific targeting of nozzle-based blasting.
| Evaluation factor | Wet abrasive blasting | Dry blasting | Shot peening | Vibratory finishing |
|---|---|---|---|---|
| Primary purpose | Controlled cleaning, deburring, texturing, honing, pretreatment | Fast stripping, descaling, roughening, general cleaning | Fatigue-related surface treatment and stress conditioning | Batch smoothing and edge softening |
| Airborne dust | Very low free dust | High unless strongly enclosed and extracted | Usually lower than dry blasting only in some setups; process-dependent | Low airborne dust, though compound waste remains |
| Surface character | Fine, even, matte or satin | More aggressive and often rougher | Functional peened texture | Broadly smoothed over longer cycles |
| Media embedding risk | Lower on sensitive surfaces due to water film effect | Higher on certain softer or coated surfaces | Depends on media and intensity | Generally low projected-impact risk |
| Local selectivity | High with nozzle path and fixturing control | High, but with more dust-management burden | Moderate to high in dedicated peening cells | Lower, since parts are processed more generally |
| Process repeatability | High with stable slurry and pressure control | Can drift with dry-media feed variation | High when intensity and coverage are qualified | Good for batch lots, less precise for local zones |
| Housekeeping impact | Cleaner enclosure behavior and lower dust exposure | Greater dust handling and cleanup demand | Process-dependent | Lower dust, but more media and compound management |
Another useful distinction is downstream cleanliness. In pretreatment work, wet blasting can align well with broader surface preparation guidance from AMPP because the process combines mechanical cleaning with a comparatively controlled operating environment. That does not make it automatically better for every application, but it does explain why wet systems are frequently evaluated for coating lines, cosmetic finishing, and precision machining support operations.
Key Specifications to Evaluate Before Buying
A wet abrasive blasting machine should be specified from the desired process result backward. Buyers first need to define whether the objective is edge honing, selective deburring, oxide removal, cosmetic texturing, glass frosting, peening, or coating pretreatment. Once the target result is clear, the machine can be evaluated on the parameters that actually determine repeatable production.
Blasting pressure and pressure stability
Pressure range matters, but stability matters more. A machine that reliably holds a narrow pressure window through long runs is more valuable than one that merely advertises a high maximum number. Stable pressure supports consistent roughness, burr-removal threshold, and edge conditioning from part to part.
Slurry management and media compatibility
The machine should be able to maintain slurry concentration consistently and accommodate the media types required for the application. Buyers should ask how the system handles settling, fines buildup, abrasive recirculation, and contamination removal. If the abrasive loop is unstable, the machine may appear acceptable during trials but drift during full production.
Motion control and nozzle positioning
In automated systems, nozzle path accuracy is central to performance. Servo-driven movement is particularly important when the process requires identical stand-off distance and attack angle on every cycle. According to the supplied company context, DassiAuto’s wet blasting lineup includes servo X/Y/Z linkage with 0.02 mm accuracy, a specification that is relevant for geometry-sensitive finishing and tool-edge preparation.
Throughput, cycle time, and loading logic
Machine output should be assessed as qualified parts per hour or per shift, not simply blast time. Loading, fixturing, draining, recipe recall, unloading, and inspection all contribute to actual throughput. For many users, changeover efficiency and operator access determine real productivity more than nozzle energy alone.
Chamber size, workspace, and plant footprint
The usable chamber envelope is often more important than the external machine dimensions. Buyers should verify fixture clearance, part orientation, maintenance access, and utility routing. This is especially important for plate-like parts, long bars, or complex multi-face components that may not fit efficiently into a generic cabinet.
HMI, permissions, and data discipline
Modern production cells benefit from HMI recipe management with hierarchical permissions. Recipes reduce operator-to-operator variation and help preserve validated settings once the process has been approved. For regulated or tightly controlled production, this can be just as important as the blasting hardware itself.
Waste handling, mist extraction, and safety
Wet blasting still produces sludge, worn abrasive fines, and mist-laden air inside the enclosure. Buyers should review sedimentation design, discharge convenience, visibility control, access for cleaning, interlocks, emergency-stop layout, and utility safeguards. These points affect not only compliance and safety, but also the day-to-day usability of the machine.
Applications Across Industries
Wet abrasive blasting is used across a wide range of industrial sectors because it can be tuned for both functional and cosmetic objectives. The same process family can prepare a carbide tool edge for coating, remove burrs from a machined stainless component, clean a forged surface for inspection, or create a uniform satin finish on a visible consumer part. What links these jobs is the need for controlled surface modification rather than uncontrolled aggression.

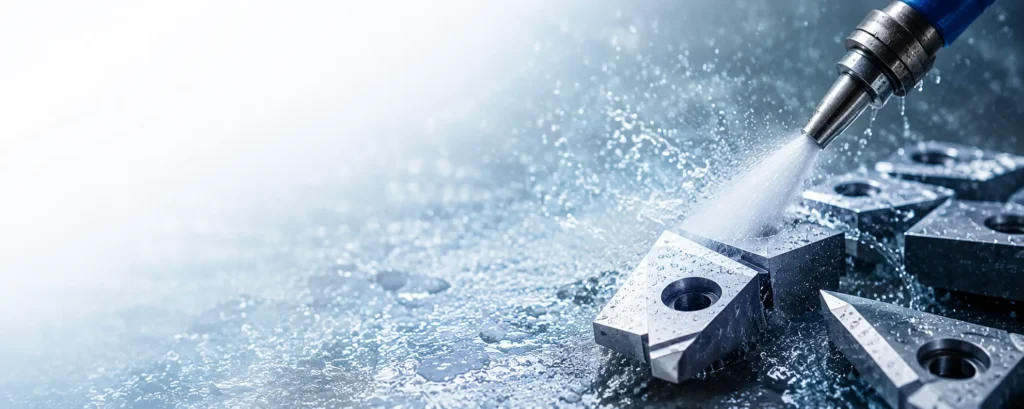

In tooling applications, the process is especially relevant for edge honing of cutting tools because edge condition, coating adhesion, and repeatable K-factor preparation must be tightly managed. In general machining, it is widely used for burr removing of metal parts where selective deburring and stable appearance are more important than the fastest possible material attack.
Pretreatment is another major category. Manufacturers preparing parts for paint or related finishing operations often evaluate coating pretreatment wet blasting when they need a cleaner and more consistent substrate before downstream conversion or coating steps. The method also supports additive manufacturing cleanup, peening applications, glass frosting, and 3C surface refinement where uniformity and tactile quality matter.
| Application type | Target industry | Typical workpiece | Process benefit delivered |
|---|---|---|---|
| Edge honing of cutting tools | Carbide tool manufacturing | Inserts, drills, end mills | Controlled edge preparation and coating readiness |
| Burr removing of metal parts | Precision machining, automotive supply, general metalworking | Valve bodies, brackets, housings | Selective deburring with repeatable surface quality |
| Scale removal from forgings | Forging and steel processing | Bars, shafts, forged blanks | Cleaner surface for inspection and later finishing |
| Pretreatment before coating | Fabrication, appliance, protective-coatings supply chains | Steel and aluminum components | More uniform cleanliness and adhesion consistency |
| Post-processing of AM parts | Additive manufacturing | Metal 3D-printed functional parts | Removal of adhered particles and improved appearance |
| Peening of metal parts | Automotive, spring, aerospace-adjacent supply | Loaded metallic components | Functional conditioning of the outer surface |
| Glass frosting | Glass processing and display products | Panels, covers, decorative glass | Even matte texture and visual consistency |
| 3C device finishing | Consumer electronics | Frames, housings, shells, covers | Controlled cosmetic smoothness and tactile finish |
Equipment Selection Guide
Equipment selection should be based on part mix, production scale, geometry complexity, and the level of control the application requires. Some users need flexible sample testing and fast recipe changes for new-product introduction. Others need stable high-volume output for a single part family, where chamber utilization, maintenance access, and fixture repeatability become more important than flexibility.
A practical selection method is to map the process into eight broad configuration tiers. These range from R&D-oriented cells through batch cabinets and into application-specific systems for plates, rods, or complex multi-axis components. The right choice depends on whether the plant is prioritizing validation speed, throughput, geometric reach, or surface precision.
| Configuration or model tier | Target production scale | Workpiece size range | Precision level | Recommended applications |
|---|---|---|---|---|
| R&D lab-scale flexible cell | Sample testing and process development | Small to medium mixed parts | High | Feasibility studies, recipe validation, short-run precision work |
| Standard manual cabinet | Low-volume technical processing | Small parts | Medium | Repairs, pilot work, custom finishing |
| Single-chamber batch cabinet | Routine batch manufacturing | Small to medium parts | Medium to high | Repetitive deburring, edge prep, cosmetic finishing |
| Single-piece dedicated machine | Stable one-piece flow | Small to medium individual parts | High | Fixed part families requiring cycle consistency |
| Double-chamber production system | Higher-throughput repetitive work | Small to medium parts | Medium | Alternating load-and-blast sequences |
| Servo multi-axis complex-part system | Precision treatment of intricate geometry | Complex 3D components | High | Multi-face parts and geometry-sensitive zones |
| Plate-part large-workspace machine | Broad-surface processing | Flat or plate-shaped parts | Medium | Panels, plates, and uniform texturing |
| Round-rod continuous system | Long-product processing | Rods, shafts, bar stock | Medium | Descaling and conditioning of cylindrical workpieces |
For development and low-volume process verification, the RB-6 robot R&D cell fits situations where flexible loading, sample comparison, and recipe trial work are central. In all cases, the best selection comes from matching part geometry, takt expectations, and finish tolerance rather than choosing solely by chamber size or peak pressure.
Cost, Lead Time and ROI Considerations
The cost of a wet abrasive blasting system depends primarily on configuration depth. A simple cabinet with manual control, limited automation, and basic recovery hardware has a very different cost structure from a multi-axis cell with servo motion, validated recipes, advanced mist extraction, and integrated waste handling. For buyers, the more useful metric is total cost per qualified part rather than machine price alone.
Automation level is usually the biggest capital-cost driver. Servo axes, PLC logic, recipe storage, user permissions, in-machine part handling, and custom fixturing all add engineering complexity. Chamber size, wear-liner specification, pump selection, nozzle count, and sludge-removal design also influence cost because they affect both build scope and long-term maintenance exposure.
Lead time should be treated as typical rather than guaranteed. Standard cabinets and modular systems are generally faster to deliver than heavily customized cells built around a specific geometry or integrated downstream process. Sample approval, fixture validation, and factory acceptance criteria can add time, particularly when the finish target is visual or multi-variable.
ROI is usually created through a combination of labor reduction, quality stability, and downstream yield improvement. In deburring work, wet abrasive blasting can reduce hand-finishing labor and improve consistency. In tool preparation, it can support more controlled edge readiness before coating. In pretreatment, it can help stabilize cleanliness and surface condition before painting or conversion processes.
The strongest economic case often appears where parts are high value and rework is expensive. If a plant is losing output to cosmetic rejects, burr-related assembly problems, unstable coating adhesion, or inconsistent tool-edge preparation, a controlled wet process can justify itself even when it is not the most aggressive removal method. Broader NIST manufacturing measurement guidance is also relevant here because repeatable surface processes depend on disciplined validation, control, and inspection rather than on machine purchase alone.
Why Choose DassiAuto — Our Company
DassiAuto Intelligent Equipment Co., Ltd is a Chinese manufacturer established in 2012 and focused on wet blasting technology for industrial surface treatment. Based on the supplied company context and the about DassiAuto company profile, it is a national high-tech enterprise operating under the ISO 9001 quality management standard, with invention patents, utility model patents, and software copyrights covering blasting equipment and control systems. The company states that it covers planning, design, manufacturing, sales, and application development across the surface-treatment equipment value chain. Its wet blasting lineup includes eight equipment configurations serving R&D, batch production, and application-specific processing, with engineering features such as PID closed-loop slurry pressure control, servo-driven X/Y/Z linkage with closed-loop control to 0.02 mm accuracy, HMI recipe management with hierarchical permissions, automatic waste-sand sedimentation with one-click discharge, and dust-collection systems that reduce water mist. The supplied context also names customer references including Wecan Cutting Tools, Ruian Carbide Tools, Huareal, Metcera, OKE, YG, Kelite, and XTC. Its service model runs from sample testing through after-sales, covering application development, planning, design, manufacturing, installation, commissioning, training, spare parts, TR-series abrasive resupply, and process optimization.
FAQ
Q1. Can wet abrasive blasting equipment be customized for my parts and finish target?
Yes. Wet abrasive blasting systems are commonly configured around part size, fixture style, nozzle path, automation level, and the required surface result. Customization is most effective when the user defines the process objective clearly, such as edge honing, deburring, satin finishing, or pretreatment before coating.
Q2. Is sample testing necessary before ordering a machine?
In most industrial cases, yes. Sample testing helps verify media type, slurry concentration, pressure window, cycle time, and achievable finish on the actual substrate and geometry. It is especially important where both functional and cosmetic requirements must be met on the same part.
Q3. What usually determines lead time for a wet abrasive blasting system?
Typical lead-time drivers include machine size, automation level, fixture complexity, control architecture, and whether pre-order process trials are required. Standard chamber equipment is usually faster to release than customized multi-axis cells or lines integrated with other pretreatment stages.
Q4. What utilities and installation conditions are normally required?
Most systems need stable compressed air, electrical supply, water management, drainage planning, and enough clearance for maintenance and sludge handling. Automated cells may also require planning for part flow, safe loading, guarding, and inspection access around the machine.
Q5. How much operator training is usually needed?
Training normally covers recipe selection, slurry management, media checks, nozzle wear inspection, daily maintenance, sediment discharge, and basic troubleshooting. Automated systems also require instruction on permissions, alarms, and why validated process parameters should not be changed informally during production.
Q6. What after-sales support matters most for long-term process stability?
The most important support items are spare-parts availability, matched abrasive resupply, troubleshooting response, and continuing process optimization when results start to drift. Long-term stability depends on disciplined maintenance, consistent consumables, and technical support that can restore the validated process window quickly.
